MOTION CONTROL
Cinematic robotic arms
SCORPIO
Camera Bot
-
Maximum height 3501 mm
Maximum horizontal reach 3101 mm
Longest horizontal camera move 5800 mm
Rated Payload 20 kg
Maximum Payload 23 kg
Repeatability (ISO 9283) ± 0.05 mm
Minimal footprint 125 x 125 cm
Footprint with stabilization legs 250 x 250 cm
Minimal height of ceiling 260 cm
Transport footprint 300 x 125 cm -
Weight 700 kg
Minimal passage (W x H) 150 x 180 cm
Barrier-free access on location
Operating temperature 0-55 °C -
Plug type 32A/5P/400V
Circuit breaker 20A
Recommended generator power 10kW or higher
TAURUS

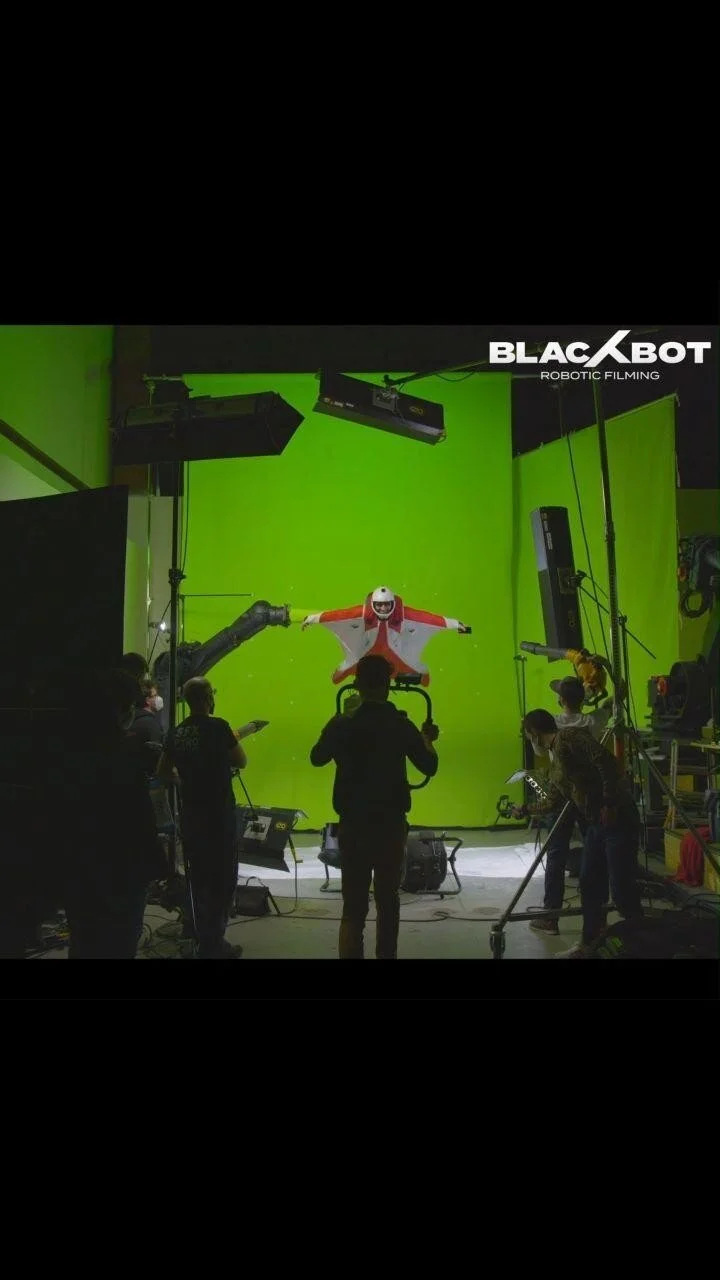

Props, Stunt mover
-
Maximum height 3026 mm
Maximum horizontal reach 2700 mm
Longest horizontal camera move 5000mm
Rated Payload 240 kg
Maximum Payload 290 kg
Track length 10m
Repeatability (ISO 9283) ± 0.05 mm
Minimal footprint 125 x 125 cm
Footprint with stabilization legs 250 x 250 cm
Minimal height of ceiling 260 cm
Transport footprint 300 x 125 cm -
Robot Weight 1111Kg
Tracks Weight 4000Kg
Minimal passage (W x H) 150 x 180 cm
Barrier-free access on location
Operating temperature 0-55 °C -
Plug type 32A/5P/400V
Circuit breaker 20A
Recommended generator power 10kW or higher
Need more information?
Detailed information about both arms can be found in the attached datasheet. In case you have a question or are just interested in how it works. Do not hesitate to contact us. We will be happy to explain everything to you.
Video gallery
Follow our journey
About us

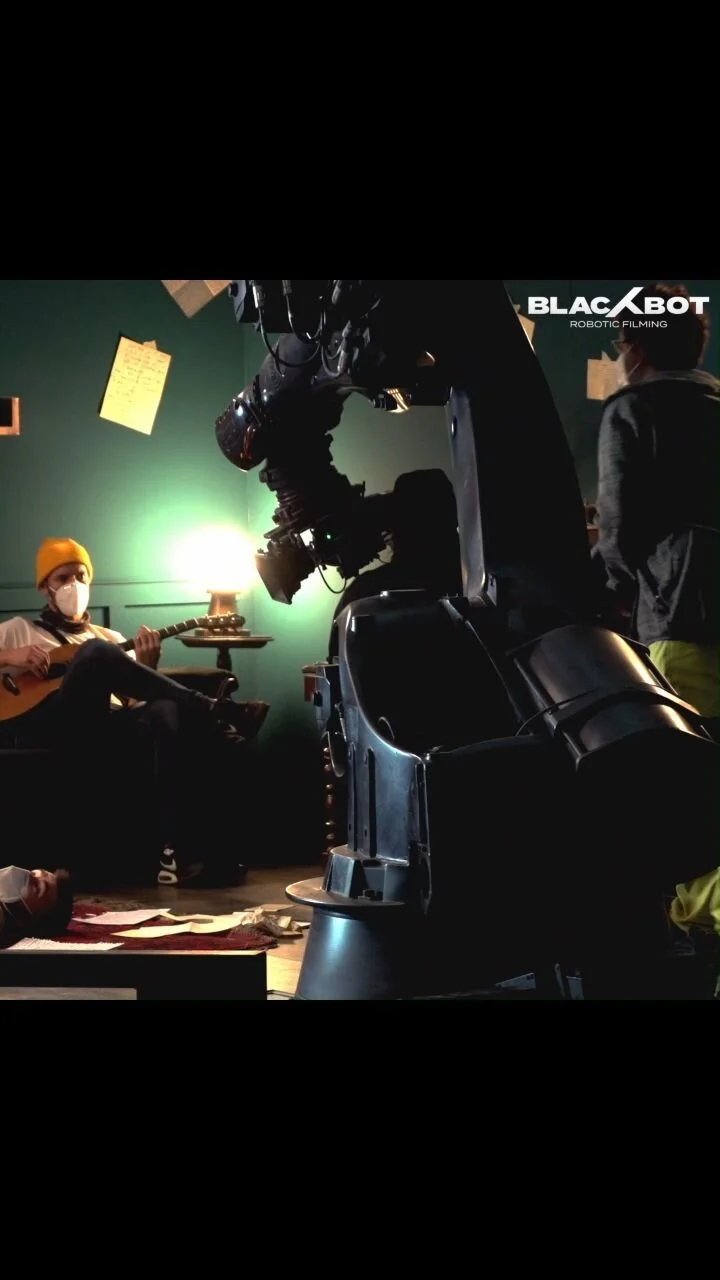

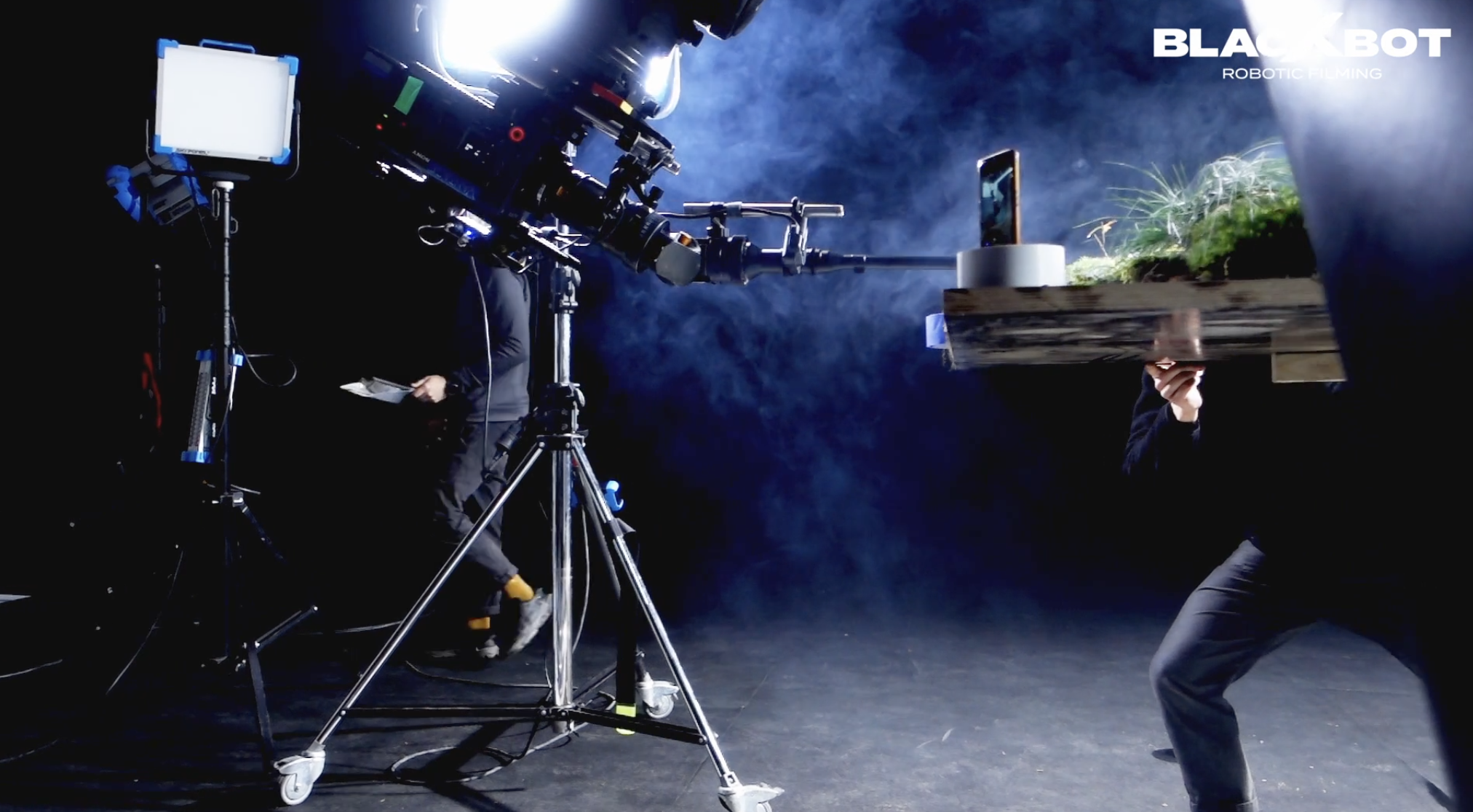

Our motion-control robots can be used to precisely control camera movements and connected accessories. The camera can be safely, precisely and repeatedly moved through a set of virtual points in the motion-control program. This ability enables you to multiplicate or mask and remove various objects in the scene and track the scenes in 3D.
We are able to synchronise multiple peripherals such as focus control units, turntables, pistons, lights, music and other SFX accessories.
